TRENDnet TS-I300W

[Total: 4    Average: 3/5]

Rating:
Amazon Price: N/A (as of August 19, 2017 8:36 pm – Details). Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on the Amazon site at the time of purchase will apply to the purchase of this product.

Wireless 1-Bay IDE Network Storage Enclosure
TS-I300W (Version 1.0R)

  • Expand your storage capacity in minutes
  • Stream your content over a secure wireless connection
  • Access and share your data from the Internet
  • Control access and content with a feature rich management interface

Overview:

The USB 2.0 IDE Wireless Network Storage Enclosure is perfect for adding storage to your network. This 802.11b/g storage server includes a Web-based utility for simple configuration and management. The storage server supports advance wireless security options. This 802.11b/g storage server provides a secure wireless network storage solution.

 RoHS Compliant

Features:

  • Wi-Fi Compliant with IEEE 802.11b/g Standard
  • Built-in one 10/100Mbps Auto-MDIX Fast Ethernet LAN port
  • Embedded one 3.5” IDE Hard Drive bay (HD not included)
  • Supports Hard Drive up to 400G
  • Built-in two USB 2.0 ports for additional storage devices
  • Supports two modes: Open mode and Account mode
  • Provides FTP Server for remote access
  • Supports 64/128-Bit WEP and WPA-PSK Encryption
  • High security support with IP address filtering to ALLOW or DENY access
  • Support USB storage devices such as hard-disk, flash disk and CD-ROM
  • Schedule downloads with FTP or HTTP without turning on the PC
  • Provides email notification service when HD is full, critical error or modification information
  • Support real time clock (RTC) and UPnP for Windows XP
  • Compliant with Windows 98(SE)/ME/NT/2000/XP and Linux SMB Operation System
  • Provides Easy-Search utility for different IP domain setting
  • 2-year limited warranty

TS-I300W

Specifications:

Hardware
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.11b
  • IEEE 802.11g
  • USB 2.0, 1.1
Microprocessor RDC 3210 (150Mhz)
Flash ROM / RAM 4MB Flash / 32MB SDRAM
IDE Controller ITE IT8211F

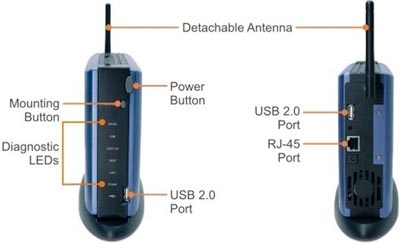

Interface
  • Power / Reset / Un-mount USB buttons
  • 1 x 10/100Mbps Auto-MDIX RJ-45Port
  • 2 x USB 2.0 Type A port
  • 1 x Internal IDE HD Bay (HD not included)
LED Power, LAN, IDE HDD, IDE HDD Full
Power Consumption 36 watts (max)
Power 12V DC, 3A
Dimensions 200 x 154 x 60mm (7.9 x 6 x 2.4in)
Weight 0.7kg (1.5 lb)
Temperature
  • Operation: 5°C ~ 40°C (41°F ~ 104°F)
  • Storage: -20°C ~ 50°C (-4°F ~ 122°F)
Humidity 90% ~ 95% (Non-Condensing)
Emissions CE, FCC
Software
Real Time OS Embedded Linux (Kernel version 2.4.25)
Network Transfer Protocol TCP/IP
Network File Protocols
  • Microsoft Networks (CIFS / SMB)
  • Internet (HTTP 1.1)
  • FTP
Supported HD Type ATA/IDE up to ATA/133
File System Type
  • IDE Drive: (UP to 400G) : EXT2
  • USB Drive: FAT16 / FAT32 / EXT3 / EXT2 / NTFS (read only)
Disk Management
  • Hard Disk Failure Detection (S.M.A.R.T)
  • Disk Used Status Management
System Management
  • Web Management (Internet Explorer 5.0 or later)
  • System Temperature Monitor
  • System Software Upgrade
  • Support Network Time Protocol
  • Multi0Users Account / Session Setting
System Monitoring
  • System Log
  • E-Mail Alert
  • IP Address Filtering (Allow or Deny)
  • Account permissions for directory
Wireless
Frequency 2.4GHz ~ 2.497GHz
Media Access Control CSMA/CA with ACK
Modulation Technology
  • 802.11b: CCK
  • 802.11g: OFDM
Data Rate
(automatically fallback)
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6Mbps
Security 64/128-bit WEP, WPA-PSK (TKIP)
Transmit Power
  • 802.11b: 16dBm (typical)
  • 802.11g: 12dBm (typical)
Receiving Sensitivity
  • 802.11b: -84dBm, 8% PER
  • 802.11g: -66dBm, 10% PER
Channel 1~11 (US) 1~13 (EU)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.



Technical Details

  • Brand Name: : TRENDnet
  • Model: : TS-I300W
  • Hardware Platform: : Pc

Product Details

  • Product Dimensions: 2.4 x 7.9 x 6.1 inches ; 1.5 pounds
  • Shipping Weight: 3.9 pounds
  • Shipping: Currently, item can be shipped only within the U.S.
  • ASIN: B000JOZAQG
  • Item model number: TS-I300W
  • Date first available at Amazon.com: July 7, 2004
